Features

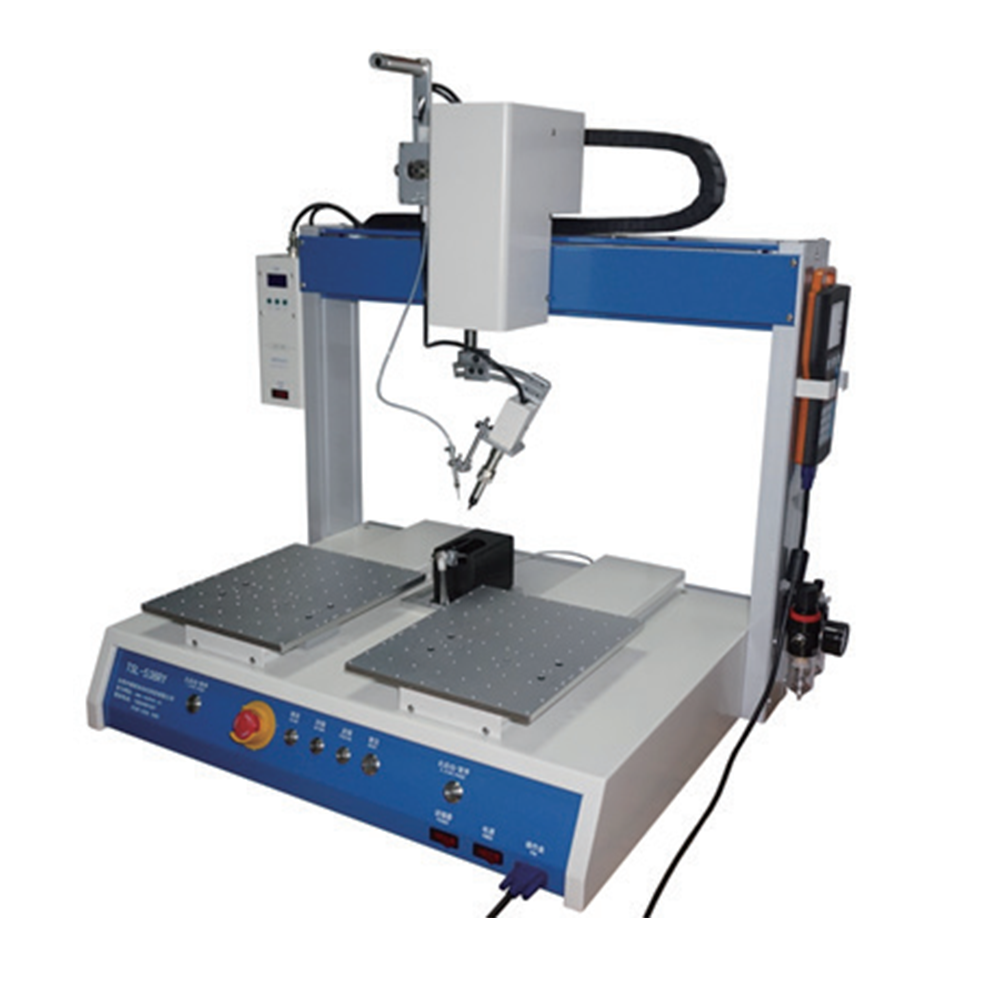

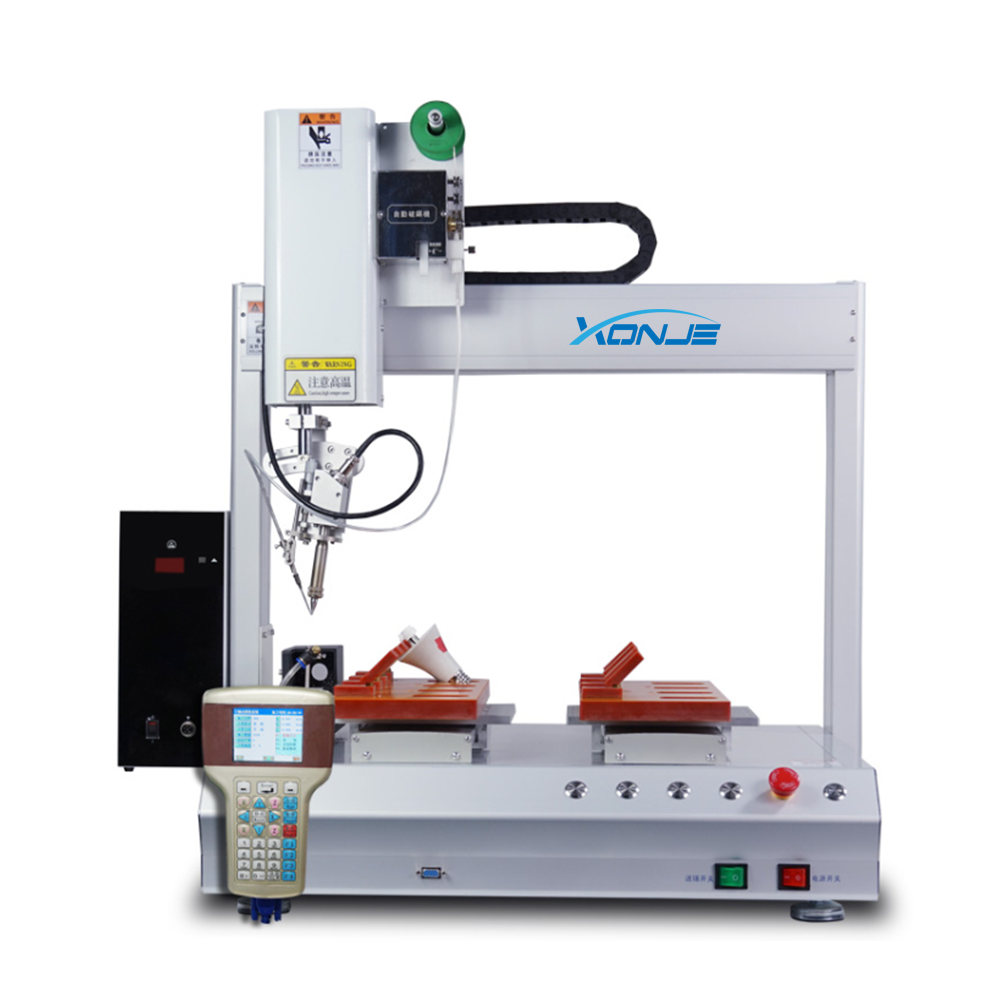

1. Double-station single-head rotary soldering machine, with double-station design so that there is no need to stop the machine to take in workpieces or fixtures during production, which effectively improves production efficiency. It is equipped with a rotating head operation function to make the equipment compatible with welding points of various angles.
2. Adopt double-station cyclic interchange working mode.
3. Five-axis double-head linkage synchronous soldering.
4. Flexible and diversified soldering methods, support spot soldering and drag soldering, set process parameters by yourself, adapt to various difficult jobs and micro soldering processes.
5. Large-capacity memory can set 500 soldering programs, 3999 soldering points can be set for each program.
6. The welding gun can be adjusted at any angle, and the welding head can be quickly replaced on the line.
Technical parameter
|
工作行程Working stroke |
500*300*300*80mm -360° |
軸數(shù)Number of axes |
5axis |
|
旋轉(zhuǎn)角度Rotation angle |
360° |
有效載荷Payload |
10KG |
|
速度控制Speed control |
XY:MAX800mm/s Z:MAX300mm/s |
重復(fù)定位精度 Repeat positioning accuracy |
±0. 02mm |
|
程序容量Program capacity |
500組sets |
編程方式Programming mode |
手持編程器 Handheld programmer |
|
焊錫控制Solder control |
200W高頻渦流智能溫控器 200W high frequency eddy current intelligent thermostat |
溫度范圍temperature range |
50~500℃ |
|
溫度精度 Temperature accuracy |
±2℃ |
送錫方式Tin feeding mode |
祥杰專利一滾輪壓送（選配） XONJE patent-Roller press（optiona） |
|
送錫范圍Tin feeding range |
Φ0. 4〜Φ1.6 mm |
功率power |
500W |
|
工作電壓working voltage |
AC 220V 50HZ |
工作氣壓Working pressure |
0. 4~0. 7MPA |
|
機(jī)器尺寸Machine size |
720*570*725MM |
重量weight |
55KG |
