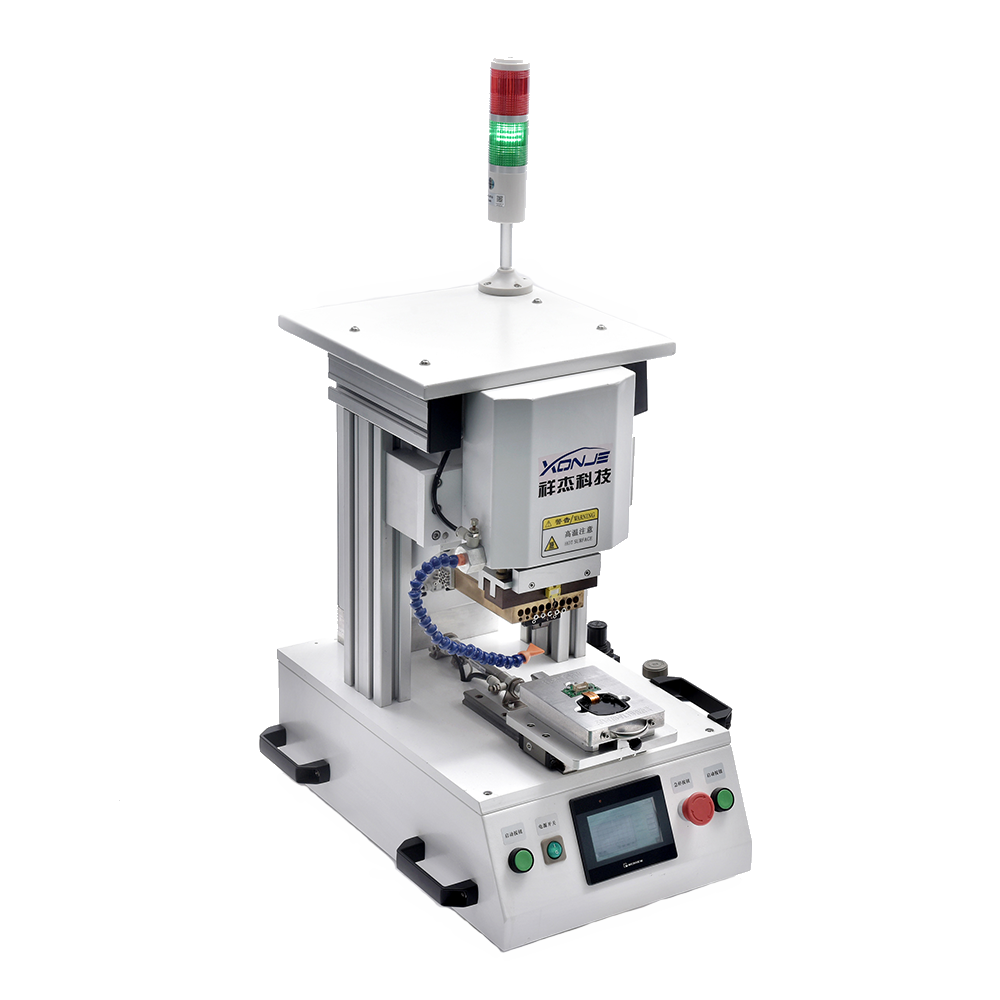

Features
1 .According to different products, the heating speed can be adjusted.
2. Welding joints of special materials ensure that the product is balanced under pressure.
3. Equipped with vacuum function, it is easier to adjust the alignment.
4. The temperature is numerically controlled, clear and precise, touch screen operation, Chinese and English display interface, PLC control, simple operation.
5. Equipped with a digital pressure gauge, the pressure range can be preset, and the SMC precision guide rail cylinder is used, which has high pressure precision and can weld products with a solder joint spacing of 0.5MM.
6.Suitable for all kinds of high-density TAB, TCP crimping and FPC, FFC, TFT and PCB Solder crimping.
Apply to
*Solder connection between FPC and PCB and connectors.
*Connection between ACF and PCB and connectors.
*Connection between TAB and PCB and connectors.
*Connection between TFT and PCB and connectors.
*Solder connection between FFC(flexible flat cable)and PCB and connectors.
*Solder connection between zebra paper and PCB and connector.
*Solder connection between ultra-fine coaxial cable and PCB and connector.
*Solder connection of enameled wires such as hard disks.resistors,capacitors,coils,transformers,IC cards,etc.
*Solder connection between battery pole piece and PCB and connector.
*Soldering connection of winding terminals of small motors. Resin thermocompression bonding for relays, printers,glasses, etc.
Technical parameter
型號model
XJPP-1A
定位冶具Positioning fixture
1set
工作面積Working area
105*130MM
使用電壓Use voltage
220VAC 2.5kw
工作氣壓working pressure
0.5-0.7MPA
機(jī)器重量Machine weight
50KG
長*寬*高（L*W*H）
490*600*720MM
